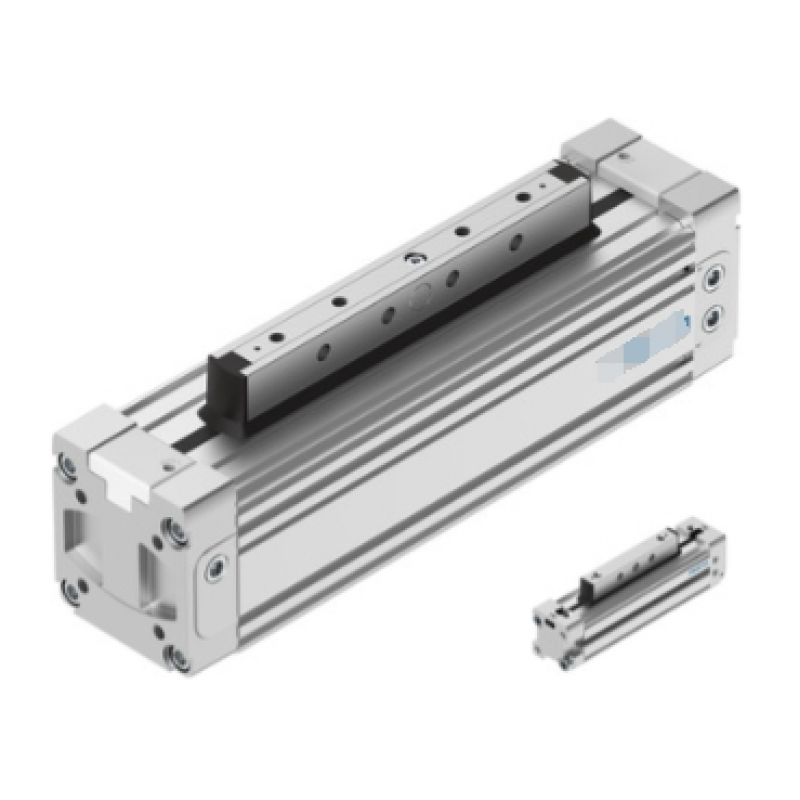

trip
1 mm ... 8500 mm
Piston diameter
32 mm
buffer
Pneumatic buffer, adjustable at both ends
Installation location
Optional
position detection
By proximity switch
Derived type
Dual end air intake
Standard piston
Extended piston
working pressure
0.2 Mpa ... 0.8 Mpa
working pressure
2 bar ... 8 bar
Working mode
Double action
CE certification (see declaration of conformity)
Compliant with the EU Explosion Protection Directive (ATEX)
CE marking (see declaration of conformity)
According to the UK EX directive
explosion-proof
Zone 1 (ATEX)
Zone 2 (ATEX)
Zone 22 (ATEX)
ATEX gas category
II 2G
ATEX Dust Category
II 3D
Gas explosion-proof and flame-retardant type
Ex h IIC T4 Gb X
Dust proof, explosion-proof, and flame-retardant types
Ex h IIIC T120°C Dc X
Explosion proof ambient temperature
-10°C <= Ta <= +60°C
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7: -: -]
Description of Work and Pilot Media
Can work with lubricating medium (must continue to work with lubricating medium thereafter)
Corrosion resistance grade CRC
1- Low corrosion resistance
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
Suitable for use in the food industry
See supplementary material description
ambient temperature
-10 °C ... 60 °C
Buffer length
20 mm
Theoretical force value at 6 bar, return stroke
483 N
Theoretical force value at 6 bar, forward travel
483 N
Backup interface
View product drawings
Installation method
With attachments
Material Description
RoHS compliance
Lid material
Die cast aluminum
Sealing material
NBR
TPE-U(PU)
