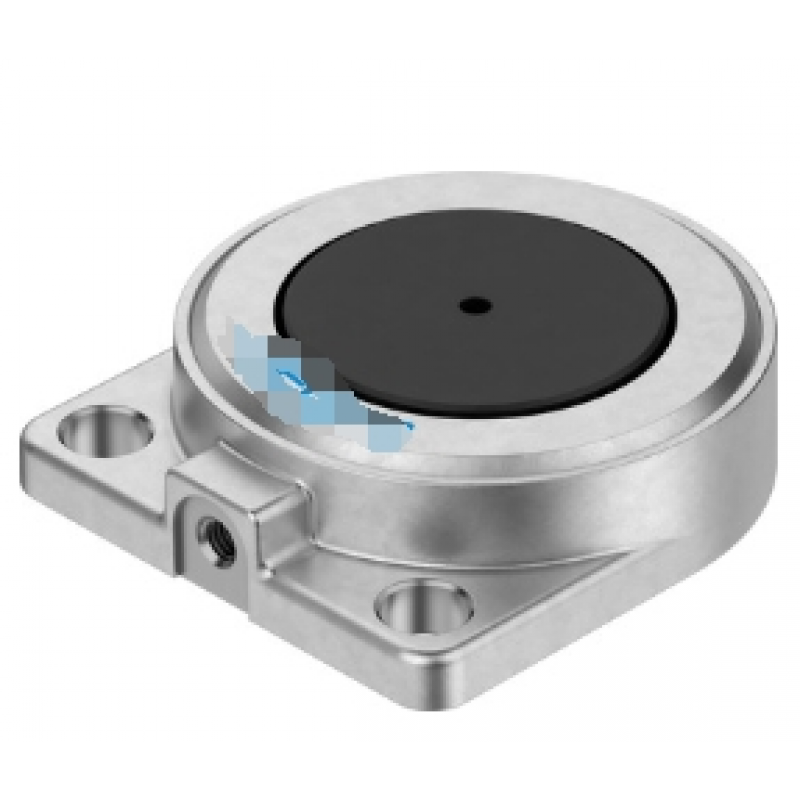

Cylinder EV-32-5 150685

trip

5 mm

Clamping surface

32 diameter

Installation location

Optional

Working mode

Single acting

Symbol

00991208

working pressure

≤0.6 Mpa

working pressure

≤6 bar

working pressure

≤87 psi

Working medium

Compressed air, in accordance with ISO 8573-1:2010 [7: -: -]

Paint Wetting Defect Substance (PWIS) Compliance

VDMA24364-B1/B2-L

ambient temperature

-10 °C ...  40 °C

Product weight

34 g

Installation method

With through-hole

Pneumatic interface

M3

Shell material

Die cast aluminum

Membrane material

TPE-U(PU)
