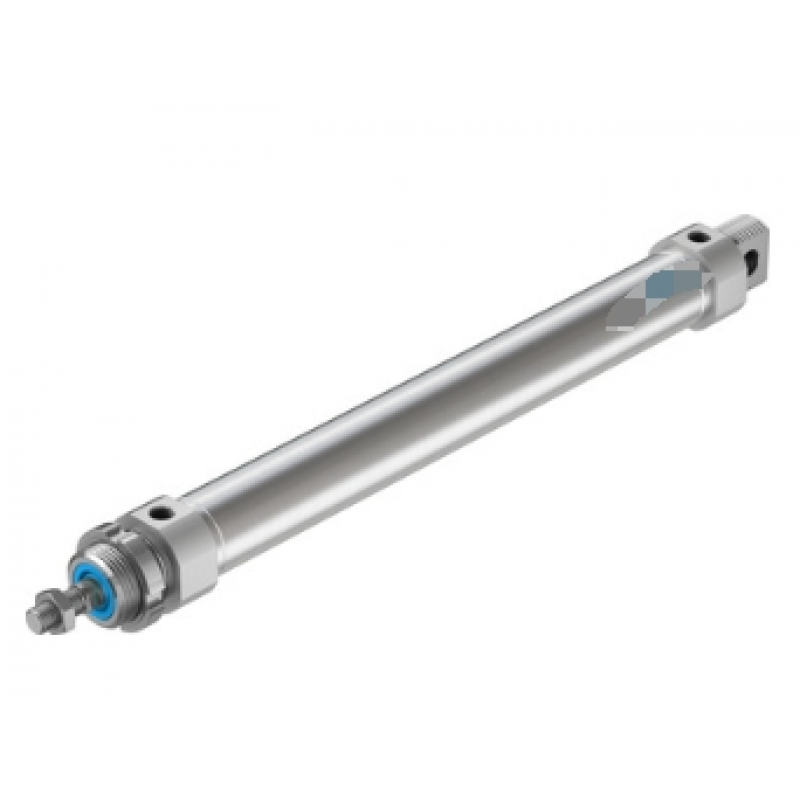

trip
250 mm
Piston diameter
32 mm
Thread of piston rod
M10x1.25
buffer
Self adjusting throttle terminal position buffer
Installation location
Optional
Structural characteristics
Cylinder diameter
piston rod
Cylinder barrel
position detection
By proximity switch
Symbol
00992970
working pressure
0.1 Mpa ... 1 Mpa
working pressure
1 bar ... 10 bar
Working mode
Double action
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7:4:4]
Description of Work and Pilot Media
Can work with lubricating medium (must continue to work with lubricating medium thereafter)
Corrosion resistance grade CRC
2- Moderate corrosion resistance
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
Cleanroom level
Level 6, in accordance with ISO 14644-1
ambient temperature
-20 °C ... 80 °C
Buffer length
14 mm
Theoretical force value at 6 bar, return stroke
415 N
Theoretical force value at 6 bar, forward travel
482.5 N
Mobile quality
346 g
Product weight
758 g
Installation method
With attachments
Pneumatic interface
G1/8
Material Description
RoHS compliance
Lid material
Refined aluminum alloy
Sealing material
NBR
TPE-U(PU)
Material of piston rod
High alloy steel
Cylinder material
High alloy stainless steel
