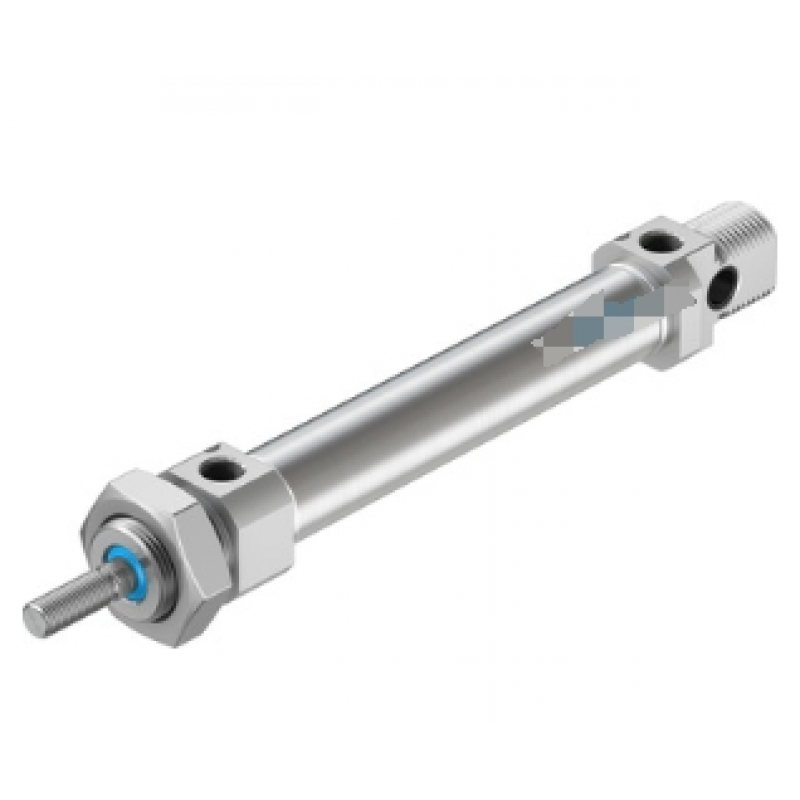

trip
1 mm ... 320 mm
Piston diameter
20 mm
Thread of piston rod
M8
buffer
Pneumatic buffer, adjustable at both ends
Installation location
Optional
Compliant with standards
CETOP RP 52 P
ISO 6432
End of piston rod
External thread
Structural characteristics
Cylinder diameter
piston rod
Cylinder barrel
position detection
By proximity switch
Derived type
One end piston rod
working pressure
0.1 Mpa ... 1 Mpa
working pressure
1 bar ... 10 bar
Working mode
Double action
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7:4:4]
Description of Work and Pilot Media
Can work with lubricating medium (must continue to work with lubricating medium thereafter)
Corrosion resistance grade CRC
2- Moderate corrosion resistance
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
Cleanroom level
Level 6, in accordance with ISO 14644-1
ambient temperature
-20 °C ... 80 °C
Impact energy at the end position
0.2 J
Buffer length
15 mm
Theoretical force value at 6 bar, return stroke
158.3 N
Theoretical force value at 6 bar, forward travel
188.5 N
Moving mass with a 0 mm stroke
44 g
Extra moving mass per 10 mm stroke
4 g
Basic weight of 0 mm stroke
186.8 g
Additional weight for every 10 meters of travel
7.2 g
Installation method
With attachments
Pneumatic interface
G1/8
Material Description
RoHS compliance
Lid material
Refined aluminum alloy
Colorless anodizing
Sealing material
NBR
TPE-U(PU)
Material of piston rod
High alloy stainless steel
Cylinder material
High alloy stainless steel
