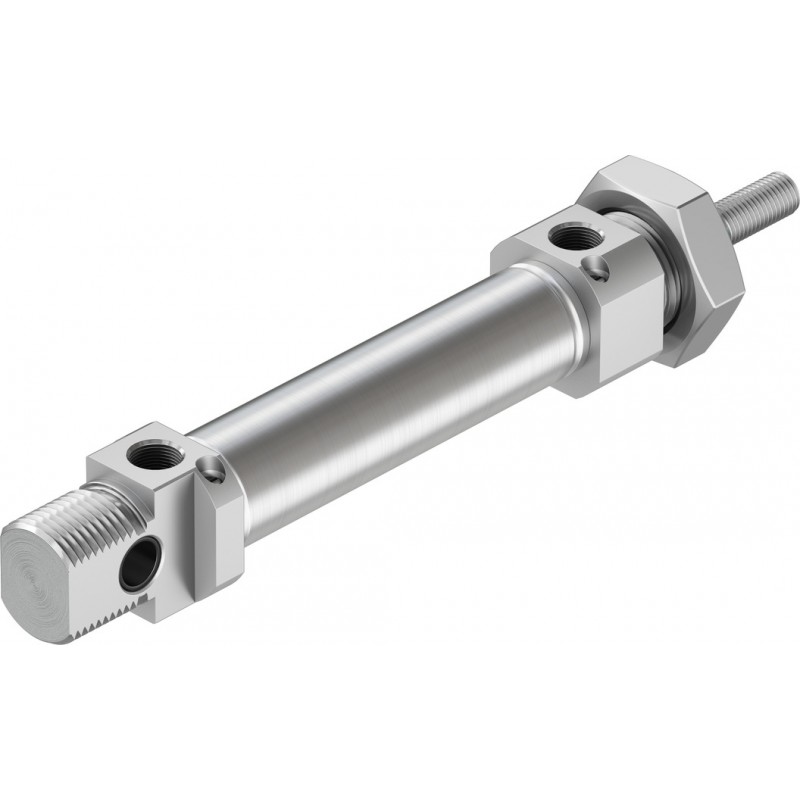

cylinder DSNU-20-50-PPV-A(19237 )

cylinder DSNU-20-50-PPV-A(19237 )
cylinder DSNU-20-50-PPV-A(19237 )
  • MODEL: DSNU-20-50-PPV-A(19237 )
  • LEAD TIME: 2 weeks
$24.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Product data sheet

  • Stroke:50 mm
  • Piston diameter:20 mm
  • Piston rod thread:M8
  • Cushioning:Pneumatic cushioning, adjustable at both ends
  • Mounting position:Any
  • Conforms to standard:CETOP RP 52 P ISO 6432
  • Piston rod end:External thread
  • Structural design:Piston Piston rod Cylinder barrel
  • Position sensing:For proximity sensor
  • Symbol:00991235
  • Variants:Piston rod at one end
  • Operating pressure:0.1 MPa ... 1 MPa
  • Operating pressure:1 bar ... 10 bar
  • Mode of operation:Double-acting
  • Operating medium:Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot media:Operation with oil lubrication possible (required for further use)
  • Corrosion resistance class (CRC):2 - Moderate corrosion stress
  • LABS (PWIS) conformity:VDMA24364-B1/B2-L
