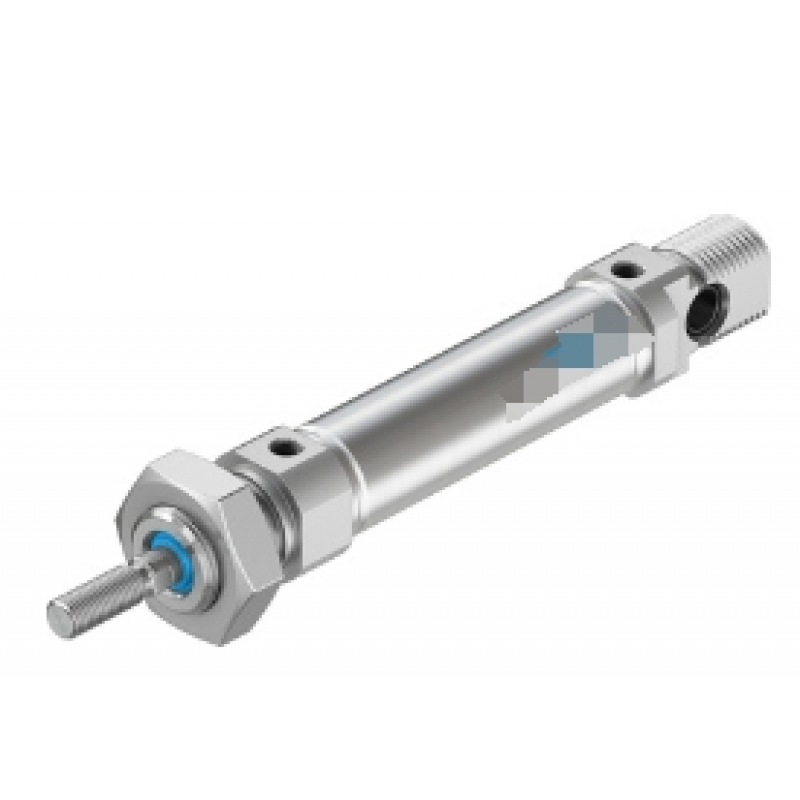

stroke
25 mm
Piston diameter
16 mm
Thread of piston rod
M6
buffer
Elastic buffer rings/pads at both ends
Installation location
Optional
Compliant with standards
CETOP RP 52 P
ISO 6432
End of piston rod
External thread
Structural characteristics
Cylinder diameter
piston rod
Cylinder barrel
position detection
By proximity switch
symbol
00991217
Derived type
One end piston rod
working pressure
0.1 Mpa ... 1 Mpa
working pressure
1 bar ... 10 bar
Working mode
Double action
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7:4:4]
Description of Work and Pilot Media
Can work with lubricating medium (must continue to work with lubricating medium thereafter)
Corrosion resistance grade CRC
2- Moderate corrosion resistance
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
Cleanroom level
Level 6, in accordance with ISO 14644-1
ambient temperature
-20 ° C 80 ° C
Impact energy at the end position
0.15 J
Theoretical force value at 6 bar, return stroke
103.7 N
Theoretical force value at 6 bar, forward travel
120.6 N
Moving mass with a 0 mm stroke
23 g
Extra moving mass per 10 mm stroke
2 g
Basic weight of 0 mm stroke
89.9 g
Additional weight for every 10 meters of travel
4.6 g
Installation method
With attachments
Pneumatic interface
M5
Material Description
RoHS compliance
Lid material
Refined aluminum alloy
Colorless anodizing
Sealing material
NBR
TPE-U (PU)
Material of piston rod
High alloy stainless steel
Cylinder material
High alloy stainless steel
