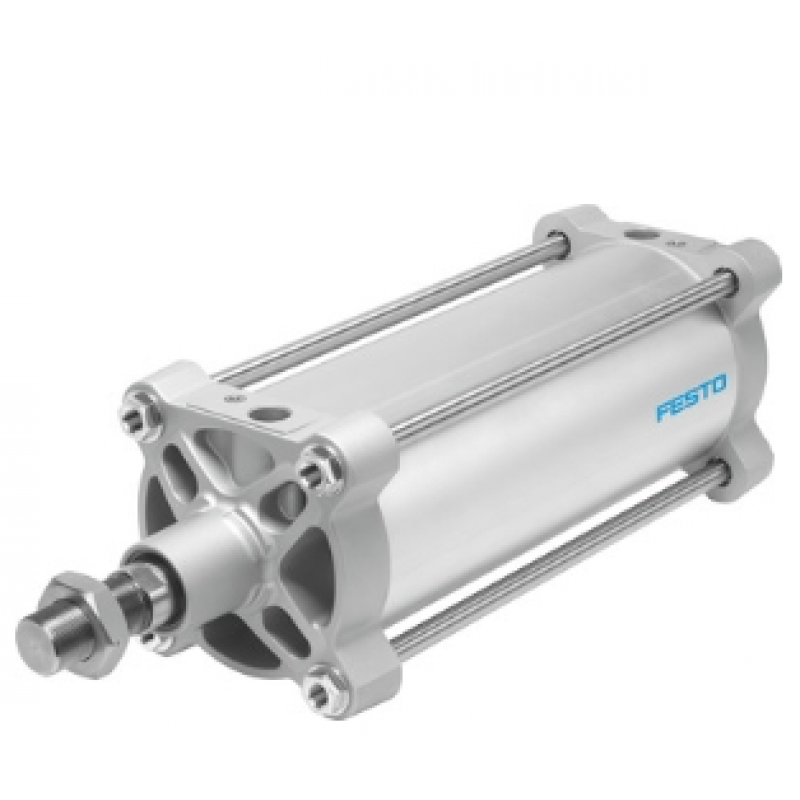

trip
400 mm
Piston diameter
160 mm
Thread of piston rod
M36x2
buffer
Pneumatic buffer, adjustable at both ends
Installation location
Optional
Compliant with standards
ISO 15552
End of piston rod
External thread
Structural characteristics
Cylinder diameter
piston rod
connecting rod
Cylinder barrel
position detection
By proximity switch
Symbol
00991235
Derived type
One end piston rod
working pressure
0.06 Mpa ... 1 Mpa
working pressure
0.6 bar ... 10 bar
Working mode
Double action
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7:4:4]
Description of Work and Pilot Media
Can work with lubricating medium (must continue to work with lubricating medium thereafter)
Corrosion resistance grade CRC
2- Moderate corrosion resistance
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
ambient temperature
-20 °C ... 80 °C
Impact energy at the end position
3.3 J
Buffer length
48 mm
Theoretical force value at 6 bar, return stroke
11310 N
Theoretical force value at 6 bar, forward travel
12064 N
Mobile quality
8172 g
Moving mass with a 0 mm stroke
4292 g
Extra moving mass per 10 mm stroke
97 g
Product weight
20071 g
Basic weight of 0 mm stroke
11751 g
Additional weight for every 10 meters of travel
208 g
Installation method
or
Installation through internal threads
With attachments
Pneumatic interface
G3/4
Material Description
RoHS compliance
Lid material
Coated cast aluminum
Material of piston seal
NBR
Piston material
Cast aluminum
Material of piston rod
High alloy steel
Material of piston rod seal oil scraper
NBR
Buffer sealing material
TPE-U(PU)
Material of buffer piston
Polyoxymethylene
Cylinder material
Smooth anodized refined aluminum alloy
Nut material
Galvanized steel
Bearing material
Metal polymer
Material of flange nut
Galvanized steel
Tie rod material
High alloy steel
