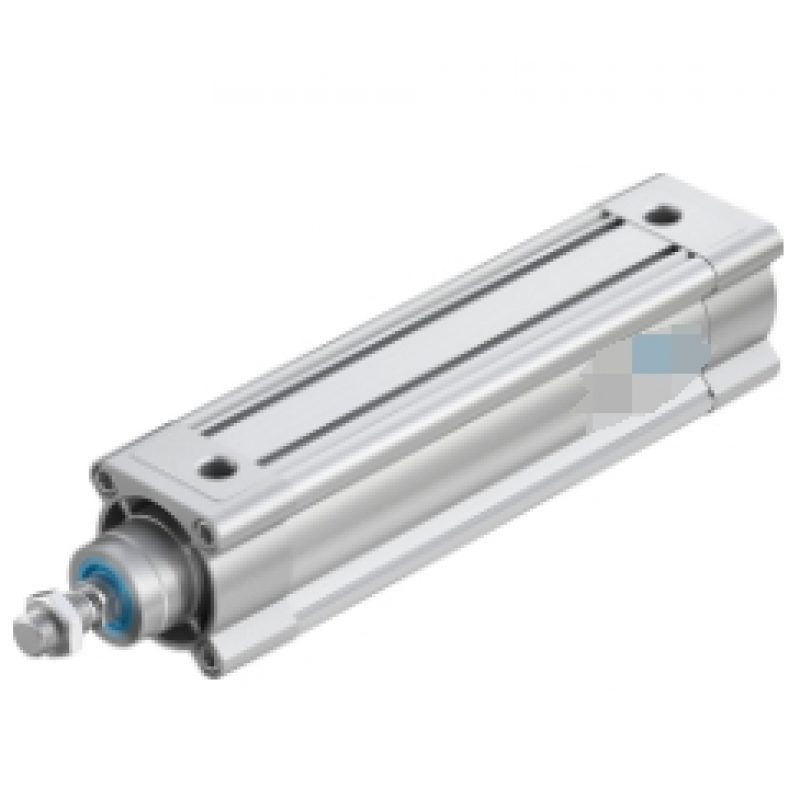

trip
200 mm
Piston diameter
63 mm
Thread of piston rod
M16x1.5
buffer
Self adjusting throttle terminal position buffer
Installation location
Optional
Compliant with standards
ISO 15552
End of piston rod
External thread
Structural characteristics
Cylinder diameter
piston rod
Cylinder profile
position detection
By proximity switch
Symbol
00992970
Derived type
One end piston rod
working pressure
0.04 Mpa ... 1.2 Mpa
working pressure
0.4 bar ... 12 bar
Working mode
Double action
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7:4:4]
Description of Work and Pilot Media
Can work with lubricating medium (must continue to work with lubricating medium thereafter)
Corrosion resistance grade CRC
2- Moderate corrosion resistance
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
ambient temperature
-20 °C ... 80 °C
Impact energy at the end position
1.3 J
Buffer length
22 mm
Theoretical force value at 6 bar, return stroke
1682 N
Theoretical force value at 6 bar, forward travel
1870 N
Moving mass with a 0 mm stroke
430 g
Extra moving mass per 10 mm stroke
25 g
Basic weight of 0 mm stroke
1740 g
Additional weight for every 10 meters of travel
62 g
Installation method
or
Installation through internal threads
With attachments
Pneumatic interface
G3/8
Material Description
RoHS compliance
Lid material
Coated die cast aluminum
Material of piston seal
TPE-U(PU)
Piston material
Refined aluminum alloy
Material of piston rod
High alloy steel
Material of piston rod seal oil scraper
TPE-U(PU)
Buffer sealing material
TPE-U(PU)
Material of buffer piston
Polyoxymethylene
Cylinder material
Smooth anodized refined aluminum alloy
Nut material
Galvanized steel
Bearing material
POM
Ring screw material
Galvanized steel
