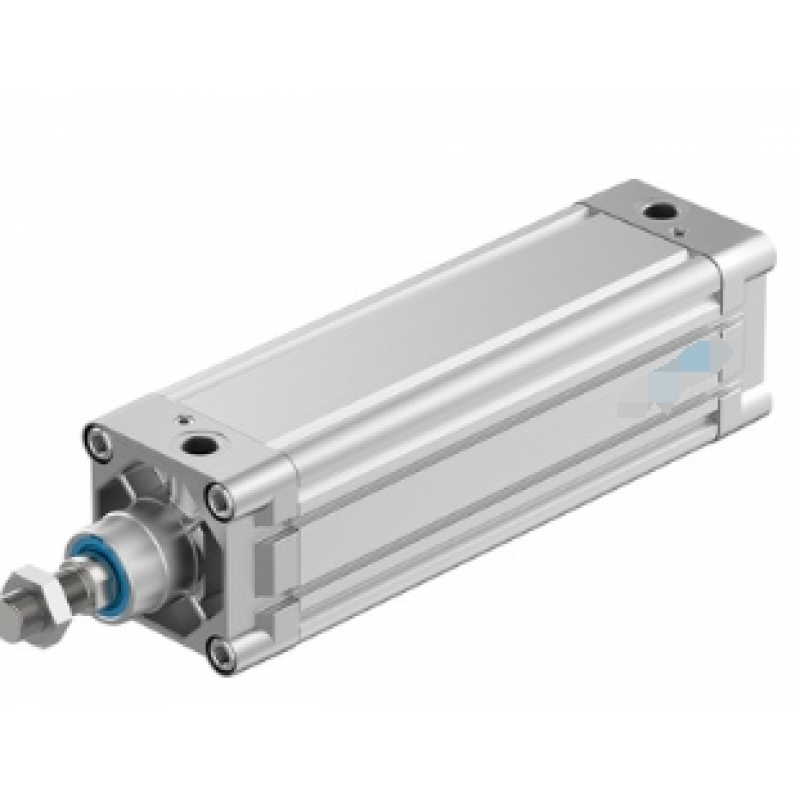

trip
3 mm ... 2000 mm
Piston diameter
80 mm
Thread of piston rod
M20x1.5
buffer
Pneumatic buffer, adjustable at both ends
Installation location
Optional
Compliant with standards
ISO 15552
End of piston rod
External thread
Structural characteristics
Cylinder diameter
piston rod
Cylinder profile
position detection
By proximity switch
Symbol
00991235
Derived type
One end piston rod
working pressure
0.06 Mpa ... 1.2 Mpa
working pressure
0.6 bar ... 12 bar
Working mode
Double action
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7:4:4]
Description of Work and Pilot Media
Can work with lubricating medium (must continue to work with lubricating medium thereafter)
Corrosion resistance grade CRC
2- Moderate corrosion resistance
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
ambient temperature
-20 °C ... 80 °C
Impact energy at the end position
0.9 J
Buffer length
32 mm
Theoretical force value at 6 bar, return stroke
2721 N
Theoretical force value at 6 bar, forward travel
3016 N
Moving mass with a 0 mm stroke
1131 g
Extra moving mass per 10 mm stroke
38 g
Basic weight of 0 mm stroke
2790 g
Additional weight for every 10 meters of travel
106 g
Installation method
Installation through internal threads
With attachments
Pneumatic interface
G3/8
Material Description
RoHS compliance
Lid material
Die cast aluminum
Coated
Sealing material
TPE-U(PU)
Material of piston rod
High alloy steel
Cylinder material
Refined aluminum alloy
Smooth anodizing treatment
