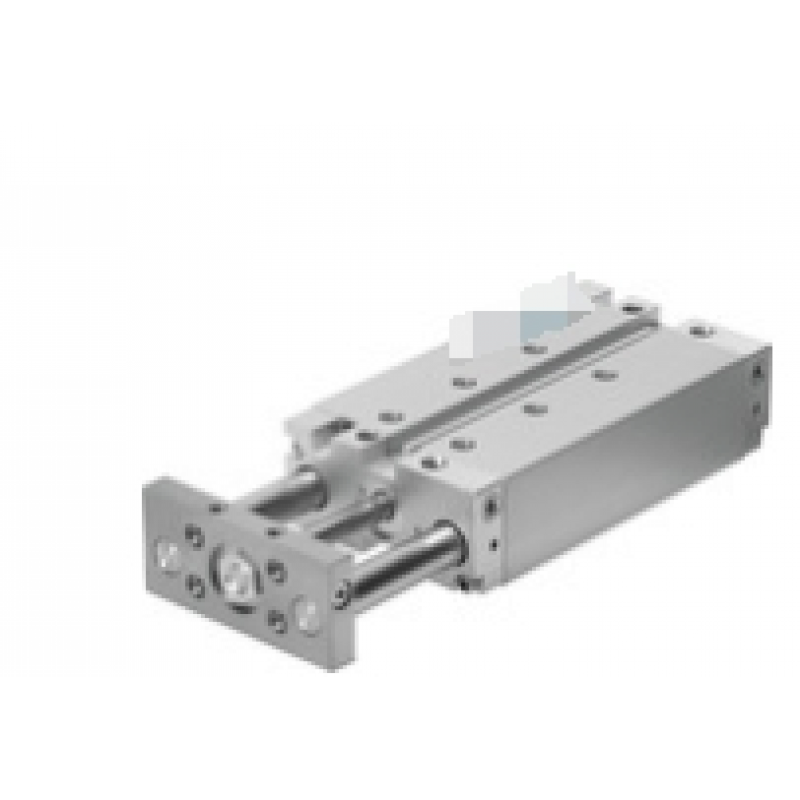

trip
20 mm ... 400 mm
Piston diameter
32 mm
Working mode, driver unit
Connecting plate
buffer
Elastic buffer rings/pads at both ends
Pneumatic buffer, adjustable at both ends
Hydraulic buffer, flexible characteristic curve
Installation location
Optional
guide
Sliding bearing guide rail
Circular ball bearing guide rail
Structural characteristics
guide
position detection
By proximity switch
Derived type
High temperature resistant sealing element, up to 120 ° C
working pressure
0.15 Mpa ... 1 Mpa
working pressure
1.5 bar ... 10 bar
Working mode
Double action
CE certification (see declaration of conformity)
Compliant with the EU Explosion Protection Directive (ATEX)
CE marking (see declaration of conformity)
According to the UK EX directive
explosion-proof
Zone 1 (ATEX)
Zone 2 (ATEX)
ATEX gas category
II 2G
Gas explosion-proof and flame-retardant type
Ex h IIC T4 Gb
Explosion proof ambient temperature
-20°C <= Ta <= +70°C
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7:4:4]
Description of Work and Pilot Media
Can work with lubricating medium (must continue to work with lubricating medium thereafter)
Corrosion resistance grade CRC
0- No corrosion resistance
2- Moderate corrosion resistance
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
ambient temperature
-20 °C ... 120 °C
Impact energy at the end position
0.2 J ... 0.4 J
Theoretical force value at 6 bar, return stroke
415 N
Theoretical force value at 6 bar, forward travel
482 N
Backup interface
View product drawings
Pneumatic interface
G1/8
Material Description
RoHS compliance
Lid material
Refined aluminum alloy
Sealing material
NBR
Shell material
Refined aluminum alloy
Material of piston rod
High alloy stainless steel
