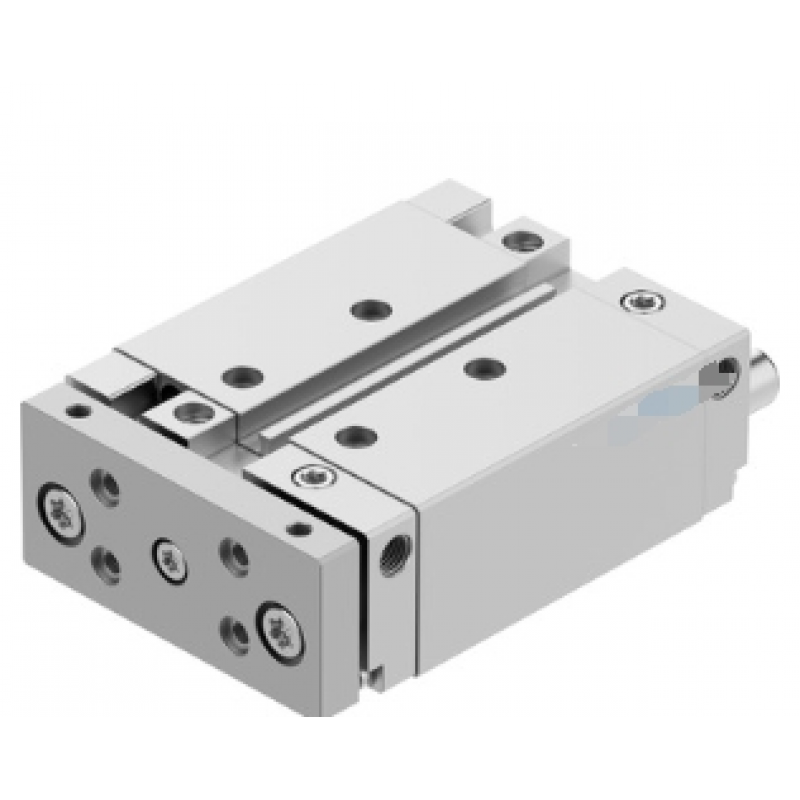

trip
50 mm
Piston diameter
25 mm
Working mode, driver unit
Connecting plate
buffer
Pneumatic buffer, adjustable at both ends
Installation location
Optional
guide
Circular ball bearing guide rail
Structural characteristics
guide
position detection
By proximity switch
working pressure
0.15 Mpa ... 1 Mpa
Working mode
Double action
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7:4:4]
Description of Work and Pilot Media
Can work with lubricating medium (must continue to work with lubricating medium thereafter)
Corrosion resistance grade CRC
0- No corrosion resistance
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
Cleanroom level
Level 7, in accordance with ISO 14644-1
ambient temperature
-5 °C ... 60 °C
Impact energy at the end position
0.3 J
Theoretical force value at 6 bar, return stroke
247 N
Theoretical force value at 6 bar, forward travel
295 N
Backup interface
View product drawings
Pneumatic interface
G1/8
Lid material
Refined aluminum alloy
Sealing material
NBR
Shell material
Refined aluminum alloy
Material of piston rod
High alloy stainless steel
