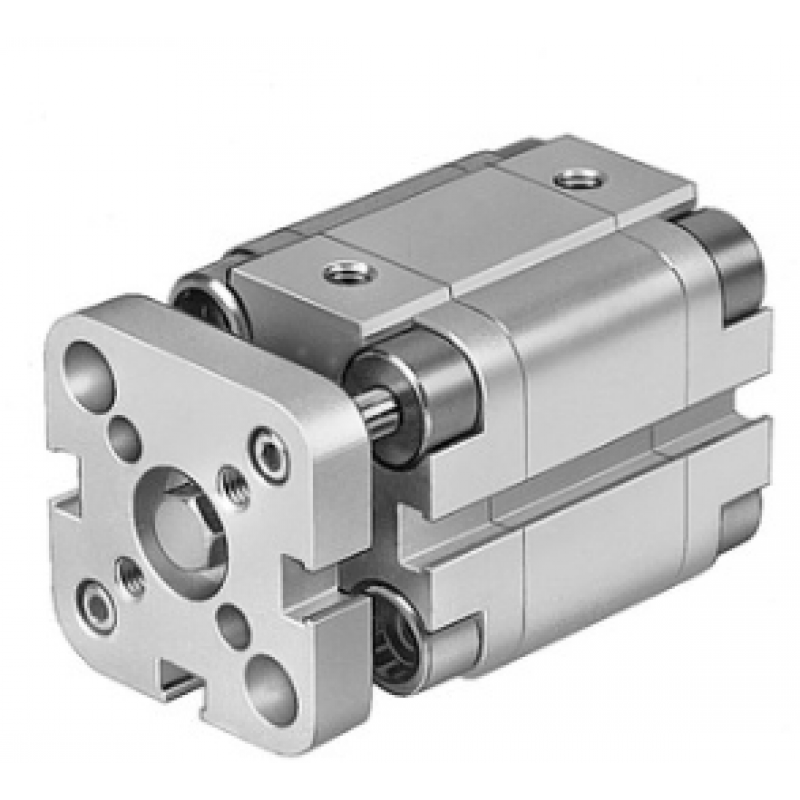

trip
30 mm
Piston diameter
25 mm
buffer
Elastic buffer rings/pads at both ends
Installation location
Optional
Structural characteristics
Cylinder diameter
piston rod
position detection
By proximity switch
Symbol
00991737
Derived type
One end piston rod
Torque/Guidance Protection
Guide rod with connecting plate
working pressure
0.1 Mpa ... 1 Mpa
working pressure
1 bar ... 10 bar
Working mode
Double action
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7:4:4]
Description of Work and Pilot Media
Can work with lubricating medium (must continue to work with lubricating medium thereafter)
Corrosion resistance grade CRC
2- Moderate corrosion resistance
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
ambient temperature
-20 °C ... 80 °C
Impact energy at the end position
0.1 J
Theoretical force value at 6 bar, return stroke
247 N
Theoretical force value at 6 bar, forward travel
295 N
Installation method
or
With through-hole
With attachments
Pneumatic interface
M5
Ring screw material
Galvanized steel
Lid material
Refined aluminum alloy
Dynamic sealing material
NBR
TPE-U(PU)
Material of piston rod
High alloy stainless steel
Cylinder material
Refined aluminum alloy
