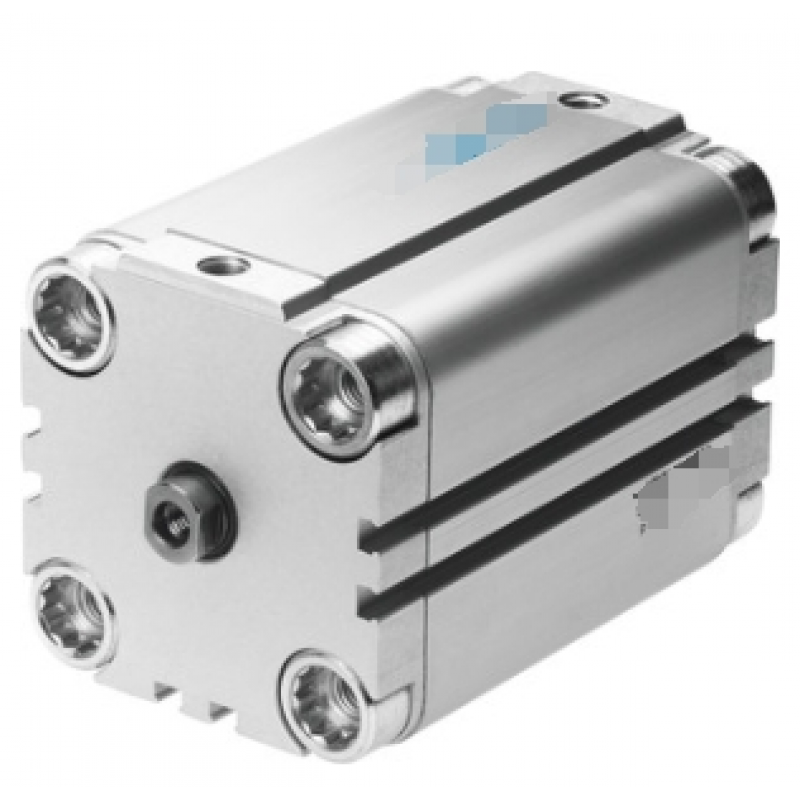

trip
15 mm
Piston diameter
40 mm
buffer
Elastic buffer rings/pads at both ends
Installation location
Optional
Working mode
Double action
End of piston rod
Internal thread
Structural characteristics
Cylinder diameter
piston rod
position detection
By proximity switch
Symbol
00991217
Derived type
One end piston rod
working pressure
0.08 Mpa ... 1 Mpa
working pressure
0.8 bar ... 10 bar
working pressure
11.6 psi ... 145 psi
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7:4:4]
Description of Work and Pilot Media
Can work with lubricating medium (must continue to work with lubricating medium thereafter)
Corrosion resistance grade CRC
2- Moderate corrosion resistance
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
ambient temperature
-20 °C ... 80 °C
Impact energy at the end position
0.52 J
Theoretical force value at 6 bar, return stroke
686 N
Theoretical force value at 6 bar, forward travel
754 N
Moving mass with a 0 mm stroke
63 g
Extra moving mass per 10 mm stroke
9 g
Basic weight of 0 mm stroke
433 g
Additional weight for every 10 meters of travel
59 g
Installation method
or
With through-hole
With attachments
Pneumatic interface
G1/8
Ring screw material
Galvanized steel
Lid material
Refined aluminum alloy
Dynamic sealing material
NBR
TPE-U(PU)
Material of piston rod
High alloy steel
Cylinder material
Refined aluminum alloy
