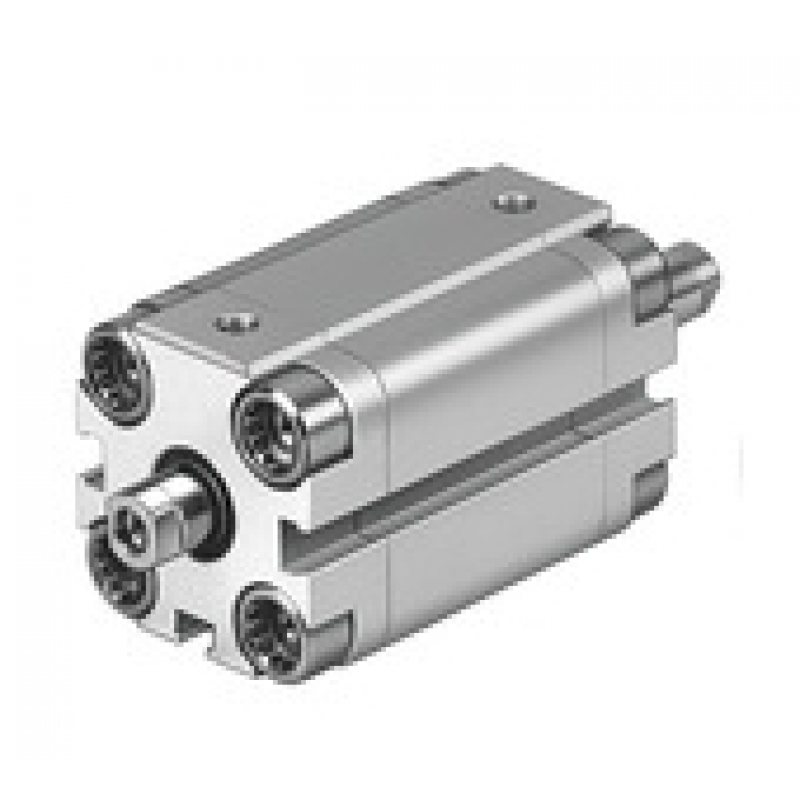

stroke
1 mm 200 mm
Piston diameter
25 mm
buffer
Elastic buffer rings/pads at both ends
Installation location
Optional
Working mode
Double action
End of piston rod
Internal thread
Structural characteristics
Cylinder diameter
piston rod
position detection
By proximity switch
symbol
00991219
Derived type
Double end piston rod
working pressure
0.12 Mpa 1 Mpa
working pressure
1.2 bar 10 bar
working pressure
17.4 psi 145 psi
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7:4:4]
Description of Work and Pilot Media
Can work with lubricating medium (must continue to work with lubricating medium thereafter)
Corrosion resistance grade CRC
2- Moderate corrosion resistance
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
ambient temperature
-20 ° C 80 ° C
Impact energy at the end position
0.1 J
Theoretical force value at 6 bar, return stroke
247 N
Theoretical force value at 6 bar, forward travel
247 N
Installation method
Either:
With through-hole
With attachments
Pneumatic interface
M5
Ring screw material
Galvanized steel
Lid material
Refined aluminum alloy
Dynamic sealing material
NBR
TPE-U (PU)
Material of piston rod
High alloy stainless steel
Cylinder material
Refined aluminum alloy
