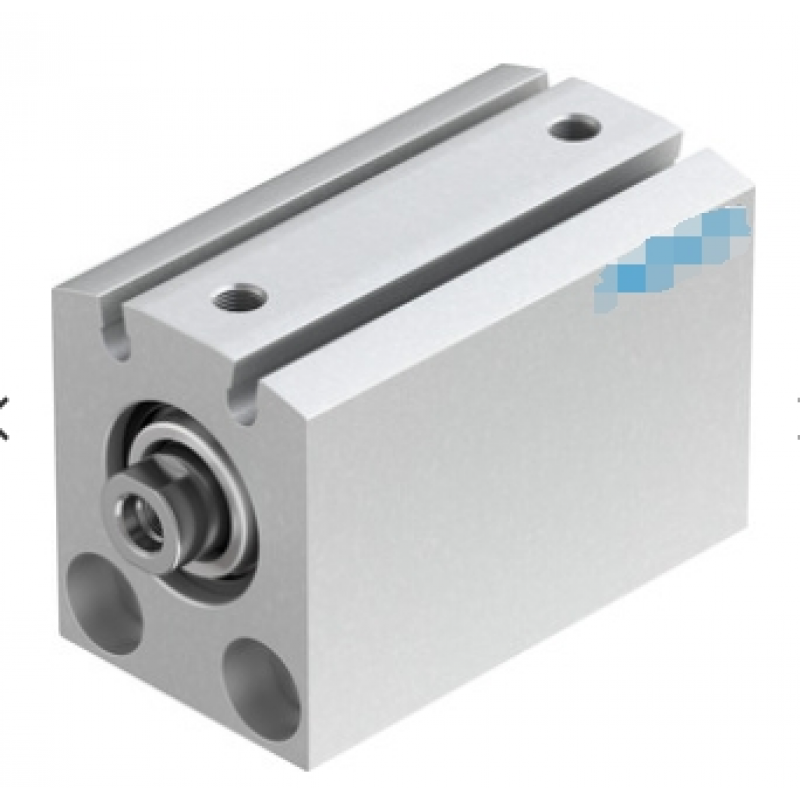

trip
25 mm
Piston diameter
20 mm
buffer
Elastic buffer rings/pads at both ends
Installation location
Optional
Working mode
Double action
Structural characteristics
Cylinder diameter
piston rod
position detection
By proximity switch
Symbol
00991217
working pressure
0.1 Mpa ... 1 Mpa
working pressure
1 bar ... 10 bar
working pressure
14.5 psi ... 145 psi
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7:4:4]
Description of Work and Pilot Media
Can work with lubricating medium (must continue to work with lubricating medium thereafter)
Corrosion resistance grade CRC
1- Low corrosion resistance
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
ambient temperature
-20 °C ... 80 °C
Theoretical force value at 6 bar, return stroke
141 N
Theoretical force value at 6 bar, forward travel
189 N
Mobile quality
38 g
Moving mass with a 0 mm stroke
23 g
Extra moving mass per 10 mm stroke
6 g
Product weight
171 g
Basic weight of 0 mm stroke
105 g
Additional weight for every 10 meters of travel
30 g
Installation method
or
With through-hole
With attachments
Pneumatic interface
M5
Material Description
RoHS compliance
Lid material
Refined aluminum alloy
Anodizing treatment
Sealing material
TPE-U(PU)
Shell material
Refined aluminum alloy
anodic oxidation
Material of piston rod
High alloy steel
