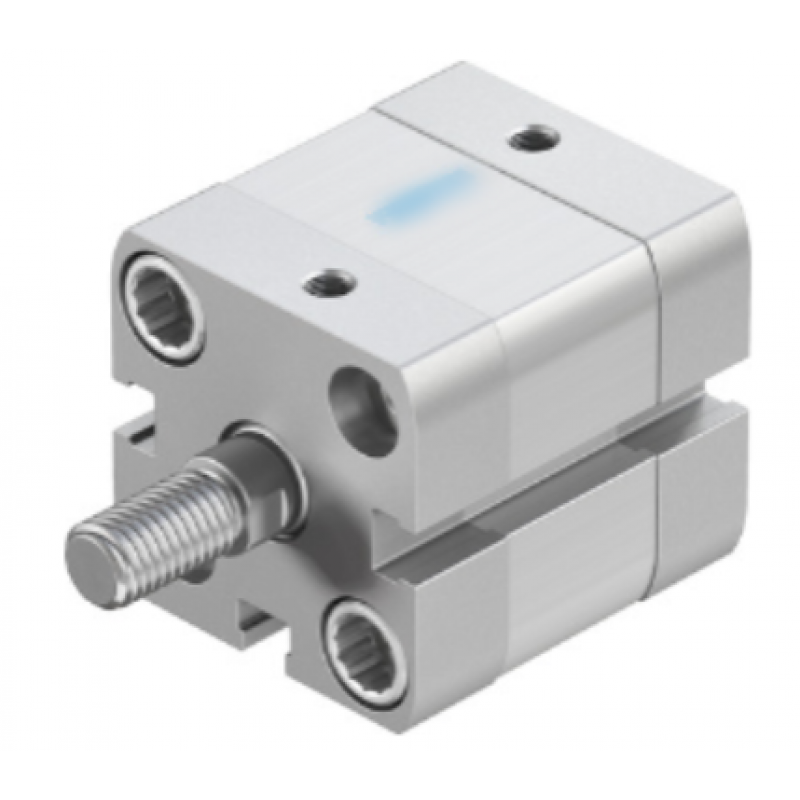

Compact cylinder ADN-25-5-A-P-A 536251

Compact cylinder ADN-25-5-A-P-A 536251
Compact cylinder ADN-25-5-A-P-A 536251
  • MODEL: ADN-25-5-A-P-A
  • LEAD TIME: 1-2 weeks
$47.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Product data sheet

  • Stroke5 mm
  • Piston diameter25 mm
  • Piston rod threadM8
  • CushioningElastic cushioning rings/plates at both ends
  • Mounting positionoptional
  • Conforms to standardISO 21287
  • Piston-rod endMale thread
  • Position detectionVia proximity switch
  • Symbol00991217
  • VariantsPiston rod at one end
  • Operating pressure0.06 MPa ... 1 MPa
  • Operating pressure0.6 bar ... 10 bar
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom classClass 6 according to ISO 14644-1
  • Ambient temperature-20 °C ... 80 °C
  • Impact energy in end positions0.3 J
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke247 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke295 N
  • Moving mass44 g
  • Product weight194 g
  • Type of mountingEither: With through-hole Via female thread With accessories
  • Pneumatic connectionM5
  • Note on materialsRoHS-compliant
  • Material collar screwsSteel
  • Material coverAnodised wrought aluminium alloy
  • Material sealsTPE-U(PUR)
  • Material piston rodHigh-alloy steel
  • Material cylinder barrelSmooth-anodised wrought aluminium alloy
