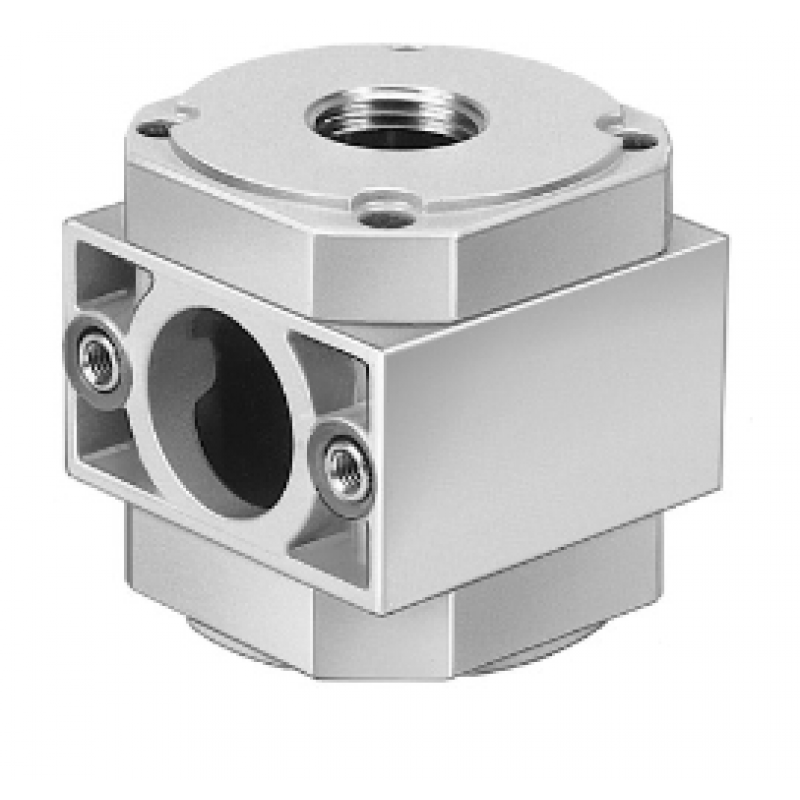

Branching module,FRM-D-MIDI 170685

Branching module,FRM-D-MIDI 170685
Branching module,FRM-D-MIDI 170685
  • MODEL: FRM-D-MIDI
  • LEAD TIME: 3-4 weeks
$20.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Product data sheet

  • Mounting positionAny
  • Structural designBranching module
  • Symbol00991510
  • Operating pressure0 MPa ... 1.6 MPa
  • Operating pressure0 bar ... 16 bar
  • Standard nominal flow rate in main flow direction 1 -> 28200 l/min
  • Operating mediumCompressed air as per ISO 8573-1:2010 [7:-:-] Inert gas
  • Corrosion resistance class (CRC)2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-10 °C ... 60 °C
  • Air quality class at the outputCompressed air as per ISO 8573-1:2010 [7:-:-] Inert gas
  • Temperature of medium-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Product weight382 g
  • Pneumatic connection 3G1/2
  • Pneumatic connection 4G1/4
  • Note on materialsRoHS-compliant
  • Housing materialDie-cast aluminum
