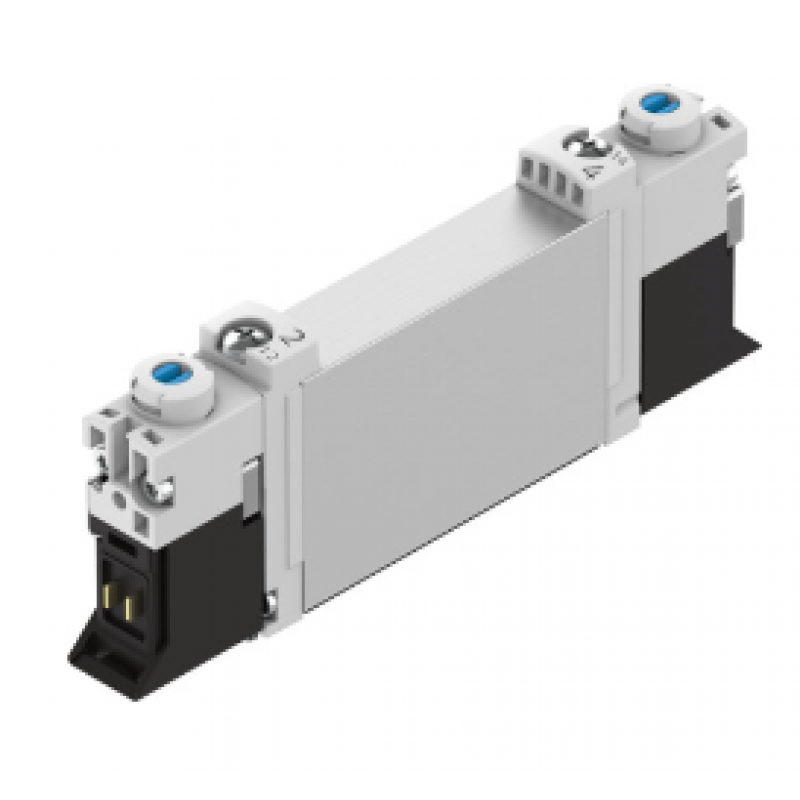

Air solenoid valve VUVG-B10-B52-ZT-F-1P3

Air solenoid valve VUVG-B10-B52-ZT-F-1P3
Air solenoid valve VUVG-B10-B52-ZT-F-1P3
  • MODEL: VUVG-B10-B52-ZT-F-1P3
  • LEAD TIME: in stock
$11.70
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Product data sheet

  • Valve function5/2, bistable
  • Actuation typeElectrical
  • Valve size10 mm
  • Standard nominal flow rate210 l/min ... 330 l/min
  • Pneumatic working portFlange
  • Operating voltage24V DC
  • Operating pressure-0.09 MPa ... 1 MPa
  • Operating pressure-0.9 bar ... 10 bar
  • Structural designPiston gate valve
  • CertificationRCM compliance mark c UL us - Recognized (OL)
  • Degree of protectionIP40 IP65 With plug socket
  • Nominal width4 mm
  • Exhaust air functionWith flow control option
  • Sealing principleSoft
  • Mounting positionAny
  • Manual overrideDetenting Non-detenting Covered
  • Type of controlPilot-controlled
  • Pilot air supply portExternal
  • Symbol00991125
  • LapOverlap
  • Pilot pressure MPa0.15 MPa ... 0.8 MPa
  • Pilot pressure1.5 bar ... 8 bar
  • Suitability for vacuumyes
  • Changeover time7 ms
