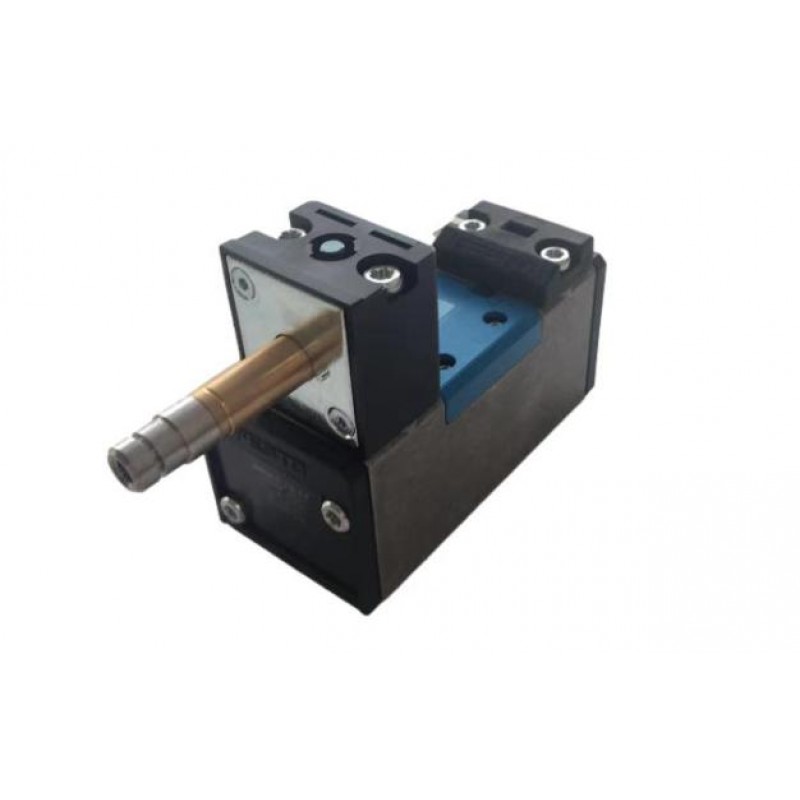

Air solenoid valve,MN1H-5/2-D-1-C,159688

Air solenoid valve,MN1H-5/2-D-1-C,159688
Air solenoid valve,MN1H-5/2-D-1-C,159688
  • MODEL: MN1H-5/2-D-1-C
  • LEAD TIME: 1 week
$58.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Product data sheet

  • Valve function5/2, monostable
  • Actuation typeElectrical
  • Width42 mm
  • Standard nominal flow rate1200 l/min
  • Pneumatic working portSub-base, size 1 according to ISO 5599-1 G1/4
  • Operating voltageVia solenoid coil, to be ordered separately
  • Operating pressure0.2 MPa ... 1 MPa
  • Operating pressure2 bar ... 10 bar
  • Structural designPiston gate valve
  • Reset methodPneumatic spring
  • Certificationc UL us - Recognized (OL)
  • Maritime classificationSee certificate
  • Certificate issuing authorityDNV-TAA000032X
  • Degree of protectionIP65
  • Nominal width8 mm
  • Width dimension43 mm
  • Exhaust air functionWith flow control option
  • Sealing principleSoft
  • Mounting positionAny
  • Conforms to standardISO 5599-1
  • Manual overrideDetenting via accessory Non-detenting
  • ISO code151
  • Type of controlPilot-controlled
  • Pilot air supply portInternal
  • Flow directionNon-reversible
  • Symbol00991049
  • LapOverlap
  • Switching time off32 ms
  • On switching time23 ms
  • Max. positive test pulse with 0 signal3700 µs
  • Max. negative test pulse on 1 signal4600 µs
  • Coil characteristicsSee solenoid coil, to be ordered separately
  • Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
  • Vibration resistanceTransport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
  • Shock resistanceShock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Temperature of medium-5 °C ... 50 °C
  • Noise level85 dB(A)
  • Pilot mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
  • Ambient temperature-5 °C ... 50 °C
  • Product weight450 g
  • Electrical connectionVia N1 coil, to be ordered separately
  • Type of mountingOn sub-base With through-hole
  • Pilot air port 12Sub-base, size 1 as per ISO 5599-1
  • Pilot air port 14Sub-base, size 1 as per ISO 5599-1
  • Pneumatic connection 1Sub-base, size 1 as per ISO 5599-1
  • Pneumatic connection 2Sub-base, size 1 as per ISO 5599-1
  • Pneumatic connection 3Sub-base, size 1 as per ISO 5599-1
  • Pneumatic connection 4Sub-base, size 1 as per ISO 5599-1
  • Pneumatic connection 5Sub-base, size 1 as per ISO 5599-1
  • Note on materialsRoHS-compliant
  • Seals materialHNBR NBR
  • Housing materialDie-cast aluminum
